General Introduction Of CNC 5-Axis 3-Head Household Cleaning Brush Making Machine WXD-5A3H01

1) Flat brushes? Curved brushes? Fan-shaped brushes? Wavy brushes? Spherical toilet brushes? Double side hockey brushes? Can an operator use only a machine to make all of these different household cleaning brushes? Yes, absolutely! This 5-axis 3-head machine WXD-5A3H01 is the best answer to the question.

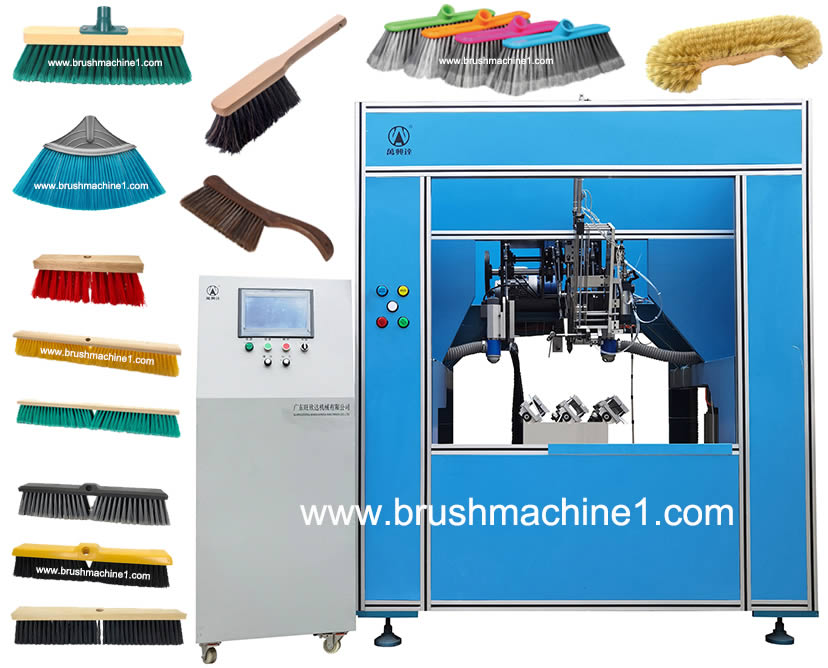

Installed with a flat worktable as displayed in the above photo, this WXD-5A3H01 can make flat, curved, fan-shaped and even wavy brushes. If the flat worktable is replaced with a round worktable, then it can make spherical toilet brushes, round ceiling cleaning brushes and double side hockey brushes, etc. Isn't it very flexible? In a word, it can make almost all kinds of household cleaning brushes in the market. However, please be kindly informed that only a set of worktable is offered with the machine together, free of charge, other extra worktable will be charged.

2) Supported by 5 axes (X-axis, Y-axis, Z-axis, A-axis and H-axis), its worktable can swing at angles, that's why all the holes and filaments could be made tilting at different angles; while a 2-axis machine can only make holes vertical at 90 degrees.

3) There are three grippers holding three brushes on worktable. After finishing a brush, the gripper automatically unlocks to let operator take out the finished brush and put another new brush base into the gripper to be processed.

4) This 5-axis household cleaning brush making machine is equipped with automatic vacuum cleaner and manual lubrication system.

5) When setting up programs for different household cleaning brushes, does the operator need to manually locate those hole positions one hole by one hole? No! There is no need to locate hole positions one hole by one hole, all the hole positions are automatically divided by the computer, which is simple and easy.

Still not knowing which brush machine to start with? Don't worry! Please do not hesitate to contact us at chloe@brushmachine1.com or just leave a message on this page, we guarantee that your inquiry would be treated with top priority and we'll try our best to get back to you with a professional solution at the earliest.

Technical Parameters of CNC 5-Axis 3-Head Household Cleaning Brush Making Machine With Safety Cover WXD-5A3H01

Maintenance of CNC 5-Axis 3-Head Household Cleaning Brush Making Machine WXD-5A3H01

1) Operator should often add lubrication oil to the working parts of this household cleaning brush making machine, so as to decrease abrasion.

2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.

3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.

4) Be sure that the electric box works under ventilative conditions; do not put this 5-axis brush making machine under humid or high-temperature conditions; do not shake the electric box.

5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.

6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.

7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.

8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen. Do not drag wires rudely, either.

9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
