Which Brushes Can WXD-4A007 Make?

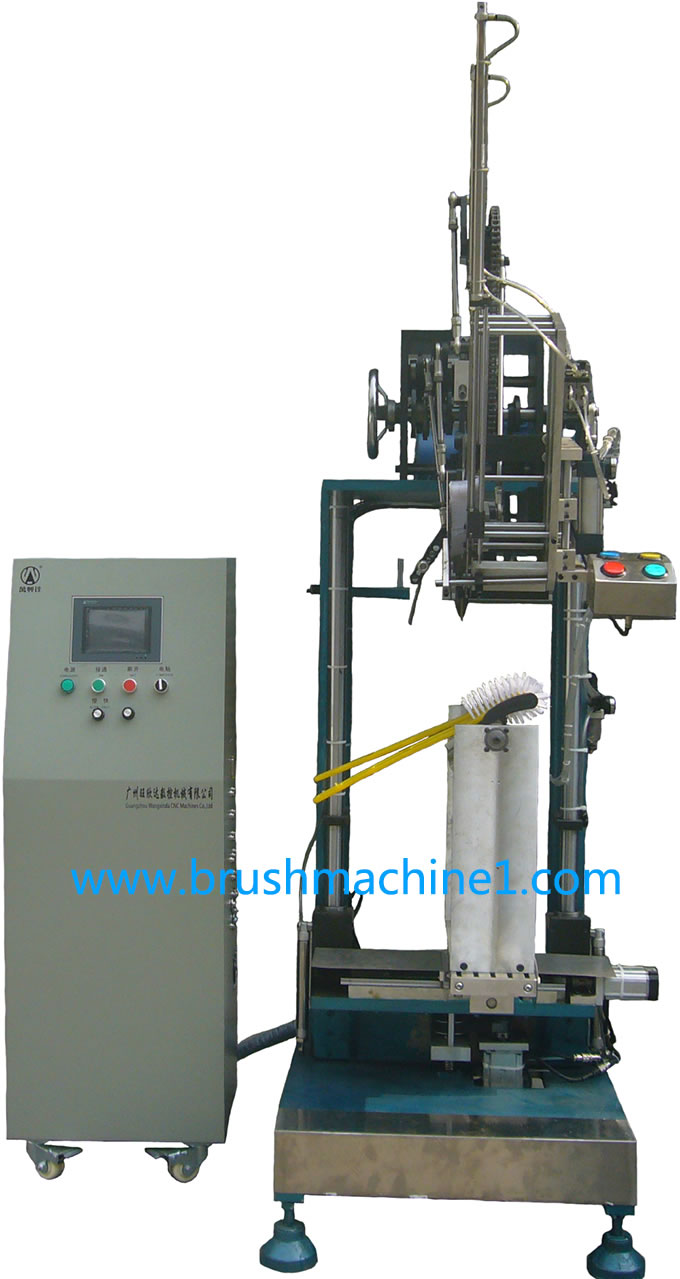

General Introduction of CNC 4-Axis Double-Side Hockey Brush Tufting Machine With Side Worktable WXD-4A007

1) This is a 4-axis double-side hockey brush tufting machine of the latest style, with side worktable. There are two grippers holding two hockey brushes on worktable. Under "Automatic Mode", it tufts hockey brushes continually, non-stop. Under "Semi-Auto Mode", it stops after it finishes a brush, and it doesn't resume working until operator presses "Start", which is suitable for a new hand.

2) Also note that the plastic hockey brush pieces should be already molded with holes in advance. As it's a tufting machine only, it can't drill holes.

3) In program, hole positions are entered by hand-controller, one hole by one hole.

4) Wondering whether this machine can make your own toilet brush model? Or have some further questions? Please do feel free to contact us at chloe@brushmachine1.com or just leave a message on this page, we'll try our best to reply to you at the earliest.

Technical Parameters of CNC 4-Axis Hockey Brush Tufting Machine With Side Worktable With WXD-4A007

Maintenance of CNC 4-Axis Double-Side Hockey Brush Tufting Machine WXD-4A007

1) Operator should often add lubrication oil to the working parts of this hockey brush machine, so as to decrease abrasion.

2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.

3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.

4) Be sure that the electric box works under ventilative conditions; do not put this hockey brush machine under humid or high-temperature conditions; do not shake the electric box.

5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.

6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.

7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.

8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen. Do not drag wires rudely, either.

9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
