Which Brushes Can WXD-5A2H03 Make?
| Brush Shapes | Ball-type toilet brushes, hockey-type toilet brushes, other similar ball-type brushes |
| Drilled Holes | Plastic brush pieces are without holes, holes are to be drilled by this machine |
| Angle of Holes | Holes could be vertical at 90 degrees or tilting at any angles, it's adjustable |
| Brush Size | 100mm x 320mm x 100° x 40° x 120mm, other size could be customized |

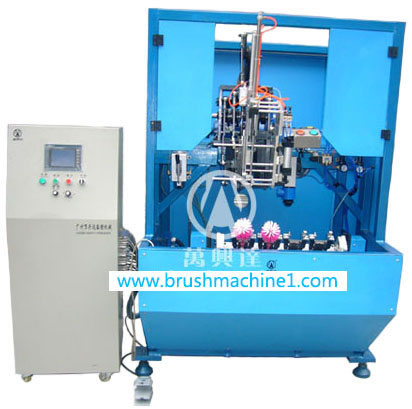

General Introduction of CNC 5-Axis 2-Head Toilet Brush Making Machine With Safety Cover WXD-5A2H03
1) If you want to make round toilet brushes, hockey-type toilet brushes or other similar ball-type brushes, this CNC 5-axis 2-head machine could be one of your choices. With a drilling-head and a tufting-head, it drills holes and tufts filaments simultaneously. As it's a 2-head machine, operator must manually convey the toilet brush piece from drilling-head to tufting-head, after it finishes drilling holes.
2) It's equipped with vacuum cleaner and manual lubrication system. The tufting method is staple-type (round wires).
3) In program, hole positions are divided averagely by "Divide" button, which is simple and easy, there is no need to confirm hole positions one hole by one hole.
4) If you are not sure whether this 5-axis 2-head machine could perfectly meet your requirements, please do not hesitate to contact us at chloe@brushmachine1.com or just leave a message on this page, we'll try our best to get back to you at the earliest.
Technical Parameters of CNC 5-Axis 2-Head Toilet Brush Drilling And Tufting Machine With Safety Cover WXD-5A2H03
| Standard Processing Area | X-axis x Y-axis x Z-axis x A-axis x H-axis = 100mm x 320mm x 100° x 40° x 120mm |
| Materials of Brush Pieces | Plastic, wood |
| Materials of Brush Filaments | PP, PVC, PET, nylon, pig bristles, stainless steel wires, copper wires, horse hair, tampico |
| Length of Brush Filaments | 10mm - 120mm (outside holes) |
| Diameter of A Single Filament | 0.08mm - 1.2mm |
| Diameter of Holes | 3mm - 6mm |
| Colors of Brush Filaments | Either 1 color or 2 colors |
| Maximum Working Speed | 5 Holes per second |
| Tufting Method | Staple type (round wire) |
| Motors | Panasonic servo motors |
| Data Input (Programming) | Hole positions are averagely divided by "Divide" button in the program |
| Quantity of Programs Saved | It saves totally 84 programs for different brush models |
| Changeable Grippers | Operator could make different brush models, as long as he changes grippers accrodingly |
| Hitech Touchable Screen | 5.4'' touchable screen, interface is in English and Chinese, other language could be customized |
| Adjusting Speed | Variable-frequency stepless adjustable speed |
| Power Supply | Single-phase 220V or 3-phase 380V, 50-60Hz, 600W |
| Packing | Wood case for machine body: 1.62m (Length) x 1.52m (Width) x 2.12m (Height) Wood case for computer: 0.7m (Length) x 0.7m (Width) x 1.5m (Height) |
| Gross Weight | Around 400KGS |
Maintenance of CNC 5-Axis 2-Head Toilet Brush Making Machine With Safety Cover WXD-5A2H03
1) Operator should often add lubrication oil to the working parts of this toilet brush machine, so as to decrease abrasion.
2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.
3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.
4) Be sure that the electric box works under ventilative conditions; do not put this toilet brush making machine under humid or high-temperature conditions; do not shake the electric box.
5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.
6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.
7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.
8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen. Do not drag wires rudely, either.
9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
