Which Brushes Can WXD-5A3H03 Make?

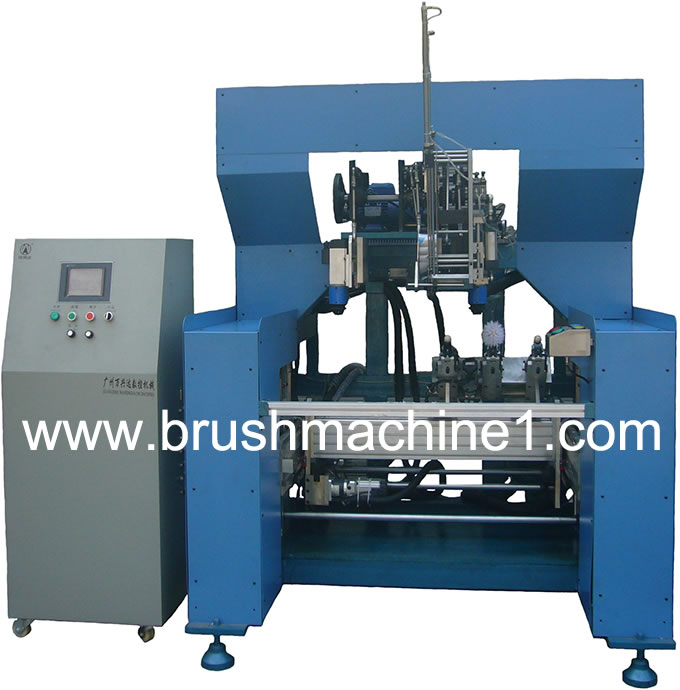

General Introduction of CNC 5-Axis Toilet Brush Drilling And Tufting Machine WXD-5A3H03

1) WXD-5A3H03 is the most popular model among toilet brush suppliers, mostly they use it to make ball-type toilet brushes and hockey-type toilet brushes. Moreover, if installing a flat worktable instead of that round worktable, operator could even use it to make flat brushes, such as wood/plastic brooms. Isn't it really cost-effective to make both round toilet brushes and flat brooms by the same machine? Please kindly note that only a set of worktable is offered together with the machine, either round worktable or flat worktable, free of charge, other extra worktable will be charged.

2) There are three grippers holding three brushes on worktable. When the machine is working, in turns, it always processes on two grippers only, another gripper is left unprocessed, so that operator could pick out the finished brush from it and put in a new brush piece to be processed. Watch the video demonstration, you'll fully understand the working principle.

3) It's installed with vacuum cleaner and automatic lubrication system.

4) If you still have any further question, please do feel free to contact us at chloe@brushmachine1.com or just leave a message on this page, we'll try our best to reply to you at the earliest.

Technical Parameters of CNC 5-Axis Toilet Brush Drilling And Tufting Machine With Safety Cover WXD-5A3H03

Maintenance of CNC 5-Axis Toilet Brush Making Machine WXD-5A3H03

1) Operator should often add lubrication oil to the working parts of this toilet brush machine, so as to decrease abrasion.

2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.

3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.

4) Be sure that the electric box works under ventilative conditions; do not put this 5-axis 3-head toilet brush making machine under humid or high-temperature conditions; do not shake the electric box.

5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.

6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.

7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.

8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen. Do not drag wires rudely, either.

9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
