Which Brushes Can WXD-3A2H05 Make?
| Brush Shapes | Both flat plank brushes and roller brushes, it's dualpurpose |
| Drilled Holes | Original brush pieces are without holes, holes are to be drilled by this machine |
| Angle of Holes | Holes are vertical to brush surface at 90 degrees only, holes can't be tilting |
| Brush Size | 400mm (Length) x 200mm(Width), other size could be customized |

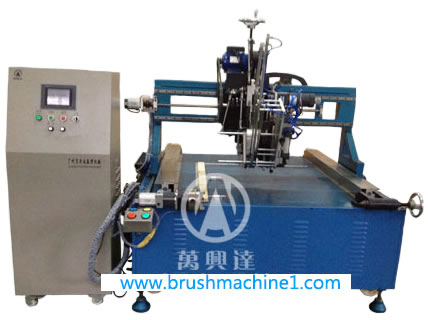

General Introduction of CNC 3-Axis 2-Head Integrated Machine WXD-3A2H05
1) With a drilling-head and a tufting-head, this WXD-3A2H05 is a dualpurpose machine which makes both plank brushes and roller brushes, on condition that grippers are installed correspondingly.
2) Please note that it drills holes firstly and tufts filaments secondly, drilling and tufting are not done synchronously.
3) If you are not sure whether this integrated machine can make your own brush model, please do not hesitate to contact us at chloe@brushmachine1.com or just leave a message on this page, we'll try our best to get back to you with a professional solution.
Technical Parameters of 3-Axis 2-Head Integrated Brush Making Machine WXD-3A2H05
| Standard Processing Area | X-axis x Y-axis x Z-axis = 400mm (Length) x 200mm (Width) x 360° (Other size could be customized) |
| Materials of Brush Pieces | Plastic, wood |
| Materials of Brush Filaments | PP, PVC, PET, nylon, pig bristles, stainless steel wires, copper wires, horse hair, tampico |
| Length of Brush Filaments | 10mm - 110mm (outside holes) |
| Diameter of A Single Filament | 0.08mm - 1.2mm |
| Diameter of Holes | 3mm - 6mm |
| Colors of Filaments | Either 1 color or 2 colors |
| Maximum Working Speed | 5 Holes per second |
| Tufting Method | Staple type (round wire) |
| Motors | Panasonic servo motors |
| Programming | Hole positions on each line are divided averagely by "Divide" button |
| Quantity of Programs Saved | It saves totally 84 programs for different brush models |
| Changeable Grippers | Operator could make other flat brush or roller brush, as long as he changes grippers accrodingly |
| Hitech Touchable Screen | 5.4'' touchable screen, interface is in English and Chinese, other language could be customized |
| Adjusting Speed | Variable-frequency stepless adjustable speed |
| Power Supply | Single-phase 220V or 3-phase 380V, 50-60Hz, 600W |
| Packing | Wood case for machine body: 1.62m (Length) x 1.52m (Width) x 1.9m (Height) Wood case for computer: 0.65m (Length) x 0.65m (Width) x 1.5m (Height) |
| Gross Weight | Around 400KGS |
Maintenance of 3-Axis 2-Head Dualpurpose Brush Making Machine WXD-3A2H05
1) Operator should often add lubrication oil to the working parts of this integrated brush making machine, so as to decrease abrasion.
2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.
3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.
4) Be sure that the electric box works under ventilative conditions; do not put this 3-axis 2-head integrated machine under humid or high-temperature conditions; do not shake the electric box.
5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.
6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.
7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.
8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen. Do not drag wires rudely, either.
9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
