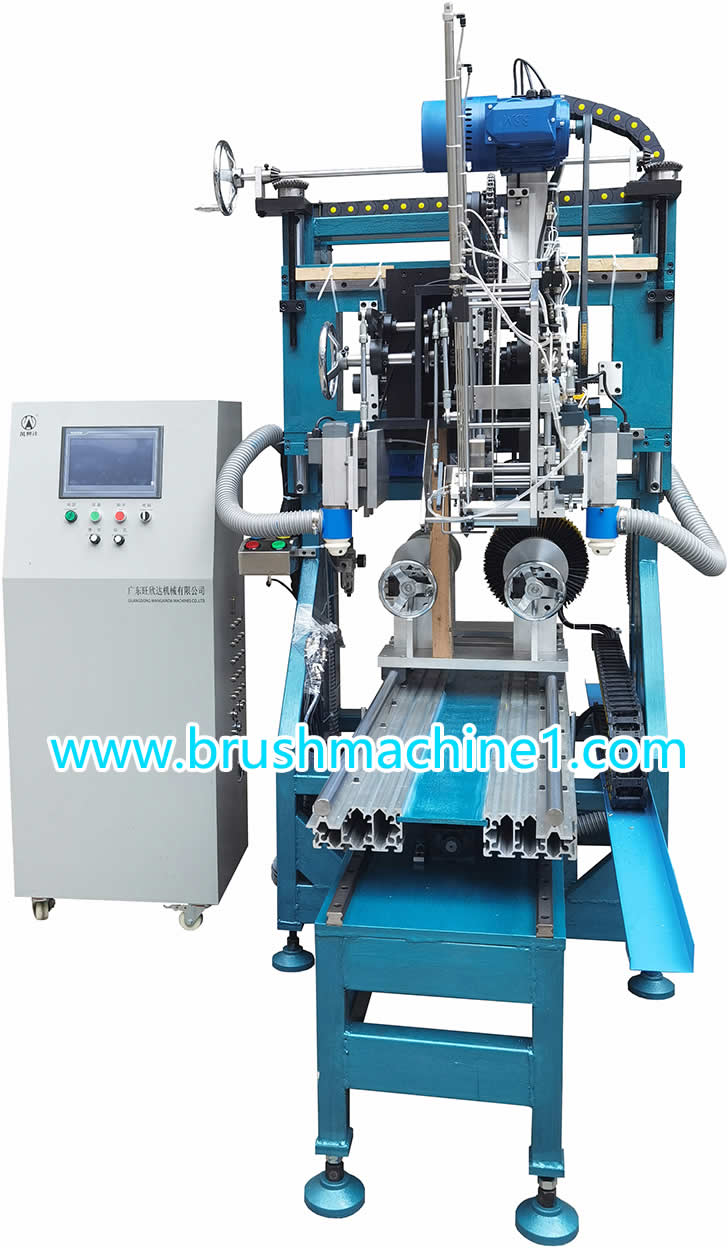

Why Does This Roller Brush Machine WXD-3A3H05 Looks Narrower Than Other Machine Models?

In a special case, the workshop was located behind a 1M wide corridor, thus the brush manufacturer couldn't use a machine wider than 1M, otherwise the machine couldn't pass through the corridor at all. That's why we made this narrower WXD-3A3H05 for the customer, which was particularly designed to pass through 1M wide corridor.

Which Brush Models Can WXD-3A3H05 Make?

It makes industrial roller brushes only.

What's The Size Of The Roller Brush Made By This WXD-3A3H05?

The maximum length of roller brushes processed is 1300MM, and the maximum outer diameter of roller brushes with filaments is 300MM.

Still having some further questions and doubts? Not knowing how to select a suitable brush machine? Please do not hesitate to contact us at chloe@brushmachine1.com or just directly leave a message on this page, it'll be our great pleasure to hear from you and we'll try our best to get back to you with a professional solution at the earliest.

Technical Parameters of 3-Axis Roller Brush Machine WXD-3A3H05

Maintenance of 3-Axis 3-Head Roller Brush Making Machine WXD-3A3H05

1) Operator should often add lubrication oil to the working parts of this roller brush machine, so as to decrease abrasion.

2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.

3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.

4) Be sure that the electric box works under ventilative conditions; do not put this roller brush machine under humid or high-temperature conditions; do not shake the electric box.

5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.

6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.

7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.

8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen. Do not drag wires rudely, either.

9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
