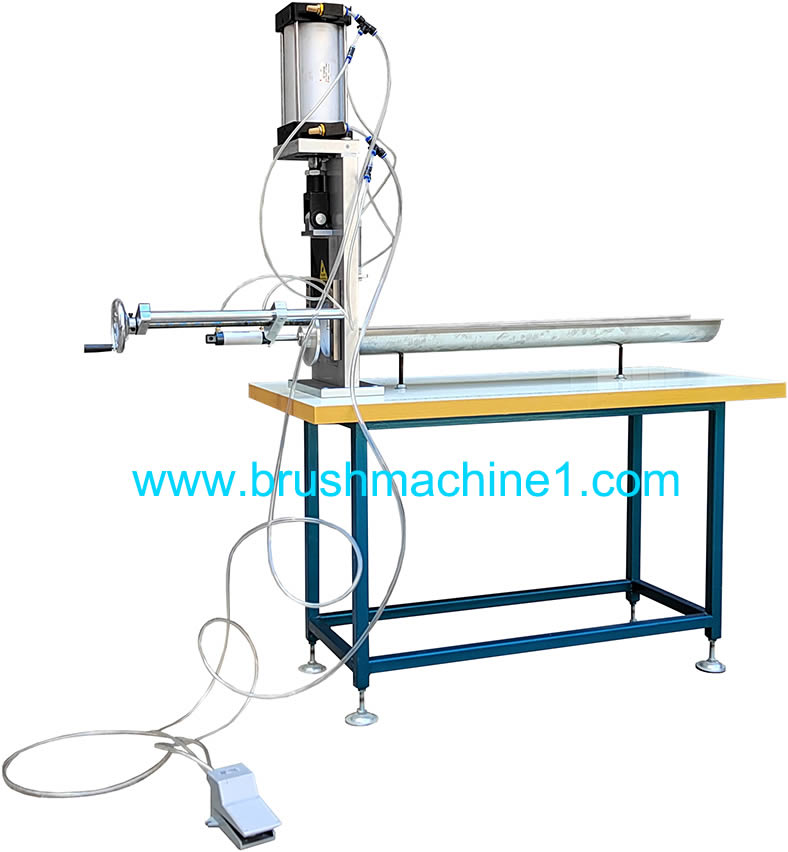

General Introduction of Pneumatic Filaments Cutting Machine WXD-C90

1) Those original filaments offered by filaments making factory are very long in some cases, so how to get suitable filaments which are cut to length? This pneumatic filaments cutting machine might be a perfect choice! With it, brush filaments are easily cut to length!

2) Being pneumatic, it must be connected to an air compressor, when it's working. From the video demonstration, you could see that the operation is so simple! Operator just needs to step on the foot switch to cut off filaments, which is as easy as ABC.

3) It's used to cut PP, PVC, PET, nylon filaments, tampico filaments, pig bristles and horse hair, etc. Please note that this cutting machine WXD-C90 cannot cut stainless steel wires, copper wires or abrasive wires.

4) Compared with our normal cutting machine WXD-C80, this WXD-C90 is within bigger calibre, the maximum diameter of a filament-bunch to be cut is 128mm. Other bigger size could be customized.

Technical Parameters Of Pneumatic Filaments Cutting Machine WXD-C90

1) Daily Continuous Working Period: 24 Hours

2) Maximum Diameter of A Single Filaments: Not bigger than 1.8mm

3) Maximum Diameter of A Filament-Bunch To Be Cut: 128MM (Other bigger size could be customized)

4) Packing Size: 1.72M (Length) X 0.57M (Width) X 1.63M (Height)

5) Gross Weight: 60KGS
