Which Brushes Can WXD-2A5H03 Make?

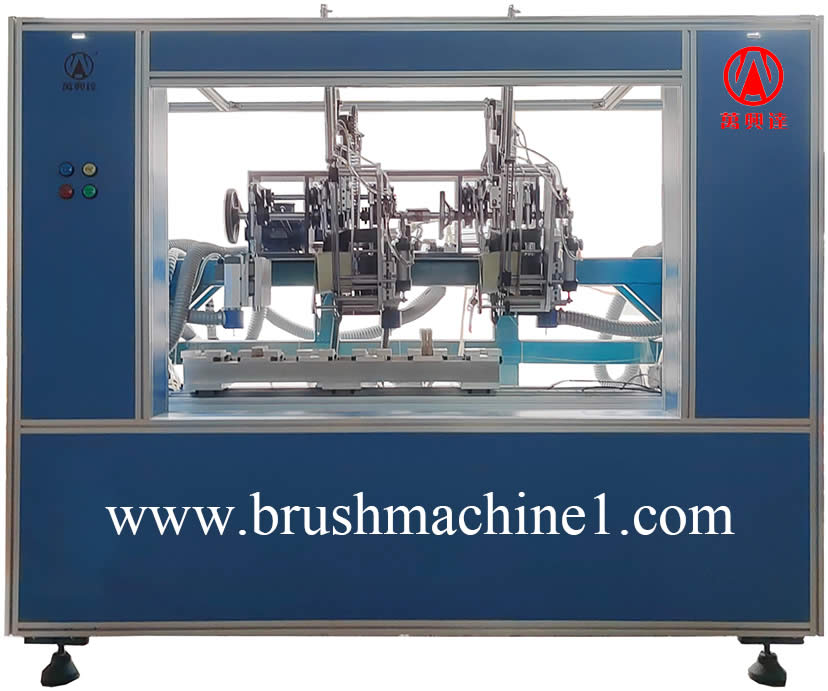

General Introduction of CNC 2-Axis 5-Head Wood Brush Making Machine With Safety Cover WXD-2A5H03

1) This is a CNC 2-axis 5-head machine of the latest design, equipped with three drilling-heads and two tufting-heads. With six grippers holding six wood brushes on worktable, it finishes two wood brushes within a working cycle, which is twice that of a 2-axis 3-head wood brush making machine. If you are looking for a wood brush machine with really high working efficiency, please do not miss it!

2) If your flat plastic brush bases are moulded without holes, or if you plan to make wood brushes, this WXD-2A5H03 could be your top choice, it could make almost all kinds of flat brushes, such as plastic scrubbing brushes, wood shoe brushes, snow-cleaning brushes, as long as the processing area is not bigger than 400mm (Length) x 100mm (Width). (A machine in other size could be customized)

3) As a 2-axis machine, please note that all the holes and filaments are made vertical at 90 degrees only, they can't be tilting at different angles. However, if you'd like to produce wood brushes with filaments tilting at different angles, a 5-axis 3-head machine or a 5-axis 5-head machine is recommended.

4) Furthermore, as a machine with two tufting-heads, it also requires that the operator should have rich experience in adjusting spare parts of tufting machines. If the operator is just a new hand, we don't suggest ordering this machine; but if the operator is a veteran who has accumulated years' experience in mechanical parts, this 2-axis 5-head machine is strongly recommended, as it brings much higher capacity.

5) Feeling very interested but not knowing whether this 2-axis 5-head wood brush making machine is the best choice? Please do not hesitate to contact us at chloe@brushmachine1.com or just leave a message on this page, it'll be our great pleasure to get back to you with a professional solution at the earliest.

Technical Parameters of CNC 2-Axis 5-Head Brush Drilling And Tufting Machine WXD-2A5H03

Maintenance of 2-Axis 5-Head Flat Brush Drilling And Tufting Machine WXD-2A5H03

1) Operator should often add lubrication oil to the working parts of this 2-axis 5-head wood brush machine, so as to decrease abrasion.

2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.

3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.

4) Be sure that the electric box works under ventilative conditions; do not put this 5-head brush machine under humid or high-temperature conditions; do not shake the electric box.

5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.

6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.

7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.

8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen. Do not drag wires rudely, either.

9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
