Which Brushes Can WXD-3A003 Make?
| Brush Shapes | Toilet brushes or other small brushes with curved surfaces |
| Molded Holes | Plastic brush pieces should be molded with holes in advance |
| Angle of Holes | Holes are vertical to surface at 90 degreees, holes can't be tilting at other angles |
| Brush Size | 350mm x 180mm x 360°, other size could be customized |

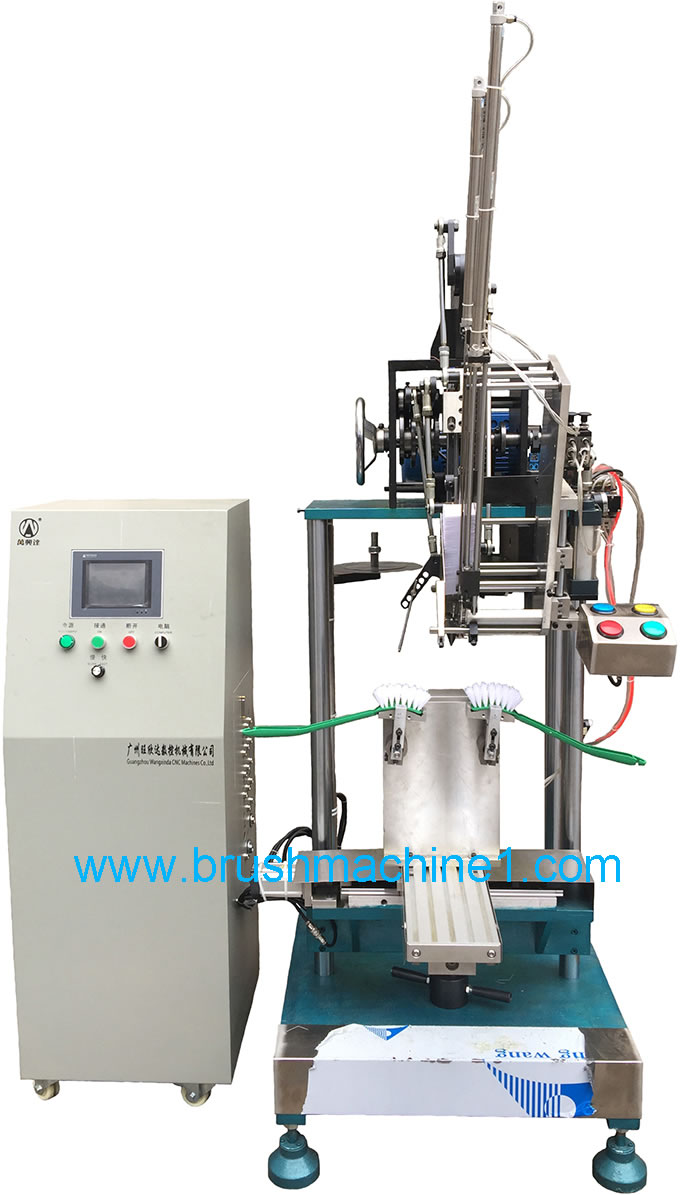

General Introduction of CNC 3-Axis Curved Toilet Brush Tufting Machine WXD-3A003
1) This is a very popular model for making plastic toilet brushes with curved surfaces. There are two grippers holding two brushes on worktable. Under "Automatic Mode", it tufts toilet brushes continually, non-stop. Under "Semi-Auto Mode", it stops after it finishes a brush, and it doesn't resume working until operator presses "Start", which is suitable for a new hand.
2) Also note that the plastic toilet brush pieces should be already molded with holes in advance. This is a tufting machine only, it can't drill holes.
3) If you still have any further question, please do feel free to contact us at chloe@brushmachine1.com or just leave a message on this page, we'll try our best to reply to you at the earliest.
Technical Parameters of CNC 3-Axis Curved Toilet Brush Tufting Machine WXD-3A003
| Standard Processing Area | X-axis x Y-axis x Z-axis = 350mm x 180mm x 360° |
| Materials of Brush Pieces | Plastic |
| Materials of Brush Filaments | PP, PVC, PET, nylon, pig bristles, stainless steel wires, copper wires, horse hair, tampico |
| Length of Brush Filaments | 10mm - 110mm (outside holes) |
| Diameter of Filaments | 0.08mm - 1.2mm |
| Diameter of Holes | 3mm - 6mm |
| Colors of Filaments | Either 1 color or 2 colors |
| Maximum Tufting Speed | 6 Holes per second |
| Tufting Method | Anchor type (flat wire) or staple type (round wire), optional |
| Motors | Panasonic servo motors |
| Data Input (Making A Program) | Hole positions are entered by hand-controller, one hole by one hole |
| Quantity of Programs Saved | It saves totally 84 programs for different brush models |
| Changeable Grippers | Operator could make other brush models, as long as he changes grippers accrodingly |
| Hitech Touchable Screen | 5.4'' touchable screen, interface is in English and Chinese, other language could be customized |
| Adjusting Speed | Variable-frequency stepless adjustable speed |
| Power Supply | Single-phase 220V or 3-phase 380V, 50-60Hz, 600W |
| Packing | Wood case for machine body: 1.5m (Length) x 1.52m (Width) x 1.9m (Height) Wood case for computer: 0.65m (Length) x 0.65m (Width) x 1.5m (Height) |
| Gross Weight | Around 250KGS |
Maintenance of 3-Axis Curved Toilet Brush Tufting Machine WXD-3A003
1) Operator should often add lubrication oil to the working parts of this toilet brush machine, so as to decrease abrasion.
2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.
3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.
4) Be sure that the electric box works under ventilative conditions; do not put this toilet brush tufting machine under humid or high-temperature conditions; do not shake the electric box.
5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.
6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.
7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.
8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen.
9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
10) Do not drag wires rudely.
