Which Brushes Can WXD-3A3H02 Make?
| Brush Shapes | Semicircle roller brushes or normal roller brushes |
| Drilled Holes | Original brush pieces are without holes, holes are to be drilled by this machine |
| Angle of Holes | Holes are vertical to brush surface at 90 degrees only, holes can't be tilting |
| Brush Size | 300mm (Length) x 220mm(Width) x 360°, other size could be customized |

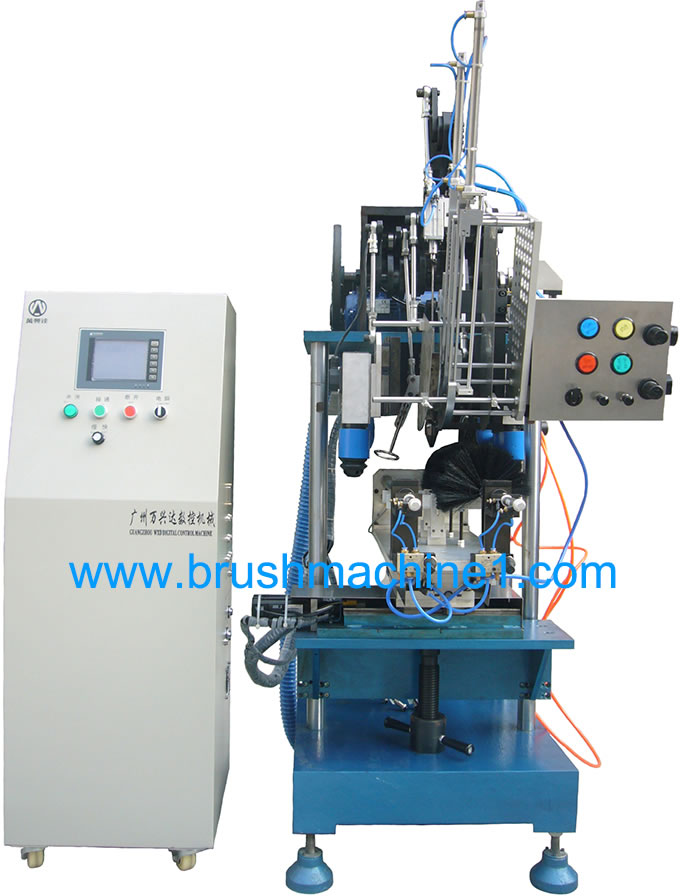

General Introduction of CNC 3-Axis 3-Head Semicircle Roller Brush Making Machine WXD-3A3H02
1) This WXD-3A3H02 is used to make semicircle roller brushes. As a matter of fact, it can make many other different roller brush models, as long as operator changes grippers accordingly. Please note that only a set of grippers is offered together with the machine, free of charge, other extra grippers will be charged.
2) There are only two grippers holding two brushes on worktable, consequently, the machine has to stop after it finishes a roller brush, so that operator could take out the finished brush and put in another brush piece to be processed.
3) This roller brush making machine WXD-3A3H02 is also installed with automatic vacuum cleaner and manual lubrication system. If you are still not sure whether it could make your own roller brush model, please do feel free to contact us at chloe@brushmachine1.com or just leave a message on this page, we'll do our best to advise you a professional solution as soon as possible.
Other Technical Parameters of 3-Axis 3-Head Semicircle Roller Brush Making Machine WXD-3A3H02
| Standard Processing Area | X-axis x Y-axis x Z-axis = 300mm x 220mm x 360° (Other size could be customized) |
| Materials of Brush Pieces | Plastic, wood |
| Materials of Brush Filaments | PP, PVC, PET, nylon, pig bristles, stainless steel wires, copper wires, horse hair, tampico |
| Length of Filaments | 10mm - 110mm (outside holes) |
| Diameter of Filaments | 0.08mm - 1.2mm |
| Diameter of Holes | 3mm - 6mm |
| Colors of Filaments | Either 1 color or 2 colors |
| Maximum Drilling/Tufting Speed | 5 Holes per second |
| Tufting Method | Anchor type (flat wire) or staple type (round wire), optional |
| Motors | Panasonic servo motors |
| Data Input (Making A Program) | Hole positions on each circle are divided averagely by "Divide" button in program |
| Quantity of Programs Saved | It saves totally 84 programs for different brush models |
| Changeable Grippers | Operator could make many other roller brush models, as long as he changes grippers accrodingly |
| Hitech Touchable Screen | 5.4'' touchable screen, interface is in English and Chinese, other language could be customized |
| Adjusting Speed | Variable-frequency stepless adjustable speed |
| Power Supply | Single-phase 220V or 3-phase 380V, 50-60Hz, 600W |
| Packing | Wood case for machine body: 1.62m (Length) x 1.52m (Width) x 1.9m (Height) Wood case for computer: 0.65m (Length) x 0.65m (Width) x 1.5m (Height) |
| Gross Weight | Around 400KGS |
Maintenance of 3-Axis 3-Head Semicircle Roller Brush Drilling And Tufting Machine WXD-3A3H02
1) Operator should often add lubrication oil to the working parts of the roller brush making machine, so as to decrease abrasion.
2) Operator should regularly check each part to see whether there is a loose screw, and please make sure to tighten it, if he finds a loose one.
3) Please keep guide rails and ballscrews clean, and make sure that there is no scrap sticking on them, so as not to decrease the precision.
4) Be sure that the electric box works under ventilative conditions; do not put this roller brush machine under humid or high-temperature conditions; do not shake the electric box.
5) Please keep electric box far away from magnetic field, otherwise it will be probably out of control.
6) Be sure that all cables connect correctly. Red, blue and yellow cables connect with three-phase 380V wires, green cable connects with neutral wire, yellow-green cable connects with earth wire. Plugs are numbered as "1, 2, 3, 4 , 5", "1, 2, 3" are for 3-phase 380V wires, "4" is for neutral wire, "5" is for earth wire.
7) The working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.
8) Do not knock at the touchable screen with hard articles, otherwise it'll decrease its sensibility or even break the screen.
9) Please note that there is high-voltage electricity inside electric box. If it is out of order, only professional technicians are allowed to check and dismantle it. Non-professionals are prohibited to dismantle it, so as to avoid getting an electric shock and the ruin of data.
10) Do not drag wires rudely.
